Biochemistry

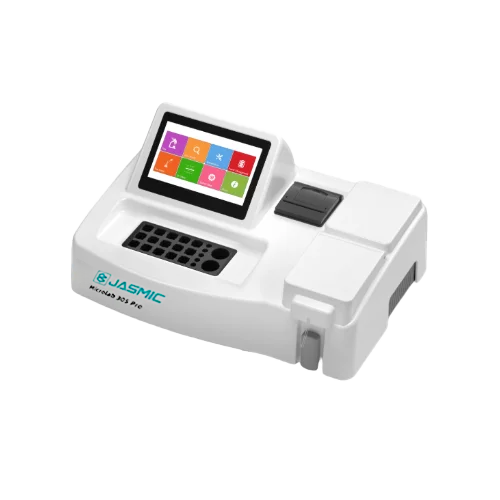

Model: Vaxpert(Microlab 305)
The Vaxpert (Microlab 305) is a reliable semi-automatic biochemistry analyzer designed for clinical and veterinary laboratories, offering precise and efficient testing capabilities. Equipped with a vibrant 7-inch color touchscreen, it provides an intuitive and user-friendly interface for easy operation. This analyzer includes a built-in thermal printer and a Peltier incubator to ensure accurate and consistent temperature control during assays. Supporting a broad range of biochemical and coagulation tests, it meets the needs of small to medium-sized labs.
- The Vaxpert (Microlab 305) Semi-Auto Chemistry Analyzer supports multiple sample types including serum, plasma, whole blood, and urine for versatile testing applications. Utilizing advanced UV-Vis photometric technology, it performs various testing modes such as end-point, kinetics, fixed-time, and coagulation assays with high accuracy. Its 7-inch TFT touchscreen runs on the Windows Embedded Compact 7 OS, enhancing usability with an interactive display and straightforward menu navigation. Data management is robust, storing up to 200,000 test results and over 300 testing programs, facilitating efficient lab workflow. Connectivity options include five USB ports and Ethernet for easy integration with Laboratory Information Systems (LIS). The instrument features a long-life tungsten halogen lamp and a 7-filter optical system for reliable and sensitive detection. A built-in Peltier incubator maintains precise temperature settings at 25, 30, and 37 degrees Celsius to optimize assay performance.
- Long warranty period, 5 years for filters
- World-class brand accessories with reliable quality
- Large storage capacity, can store more than 300 test parameters and 200000 sample results
- One-piece fusion cuvette, supporting both modes of flow cell and cuvette for testing
- Support real-time printing of sample results, can be connected to external printer
- Support connection with computer software
| Measrred Item | Measuring range | Reproducicilty(CV%) |
| K+ | 0.50-1500mmol/L | <1.0% |
| Na+ | 30.0-200.0mmol/L | <1.0% |
| Cl- | 30.0-200.0mmol/L | <1.0% |
| Ca2+ | 0.10-5.00mmol/L | <2.0% |
| PH | 7.00-9.00(unit) | <1.0% |
| Li+ | 0.30-3.00mmol/L | <3.0% |
| Principle | UV‑vis photometry (end‑point, kinetics, fixed‑time, coagulation |
|---|---|
| Sample Type | Serum, plasma, whole blood, urine, coagulation tubes |
| Screen Size | "7″ TFT touch (800×480 px) |
| Data Transmission | USB (5 ports), Ethernet, LIS-compatible |
| Power Supply | AC 100–240 V, 50/60 Hz, ≤50 W |
| Operating System | Windows Embedded Compact 7 |
| Weight | 5.41 KG |
| Data Storage Volume | 200000 |
| Printer | Built‑in thermal (57 mm) |
| Applicable Card Type | Standard & coagulation cuvettes |
