Fully Automatic Electrolyte Analyzer (JM-9900)

Electrolyte

Model: JM-9900

The JM-9900 is a fully automatic electrolyte analyzer designed for rapid and accurate clinical testing of key ions. It features a built-in rotary sample tray accommodating up to 20 samples plus QC and wash positions. With an intelligent ISE-based system and automatic bubble/waste alarms, it ensures reliable and maintenance-free operation. Connectivity is seamless via RS‑232 interface and built-in thermal printing.

Download Catalog
FULLY AUTOMATIC ELECTROLYTE ANALYZER

JM-99000

ELECTROLYTE ANALYZER

9 PARAMETERS ION SELECTIVE ELECTRODE METHOD AUTOMATIC OPERATION

≤100 Sec

Measurement Time

160μL

Sample Type

10,000+

Results Storage

8KG

Compact Design

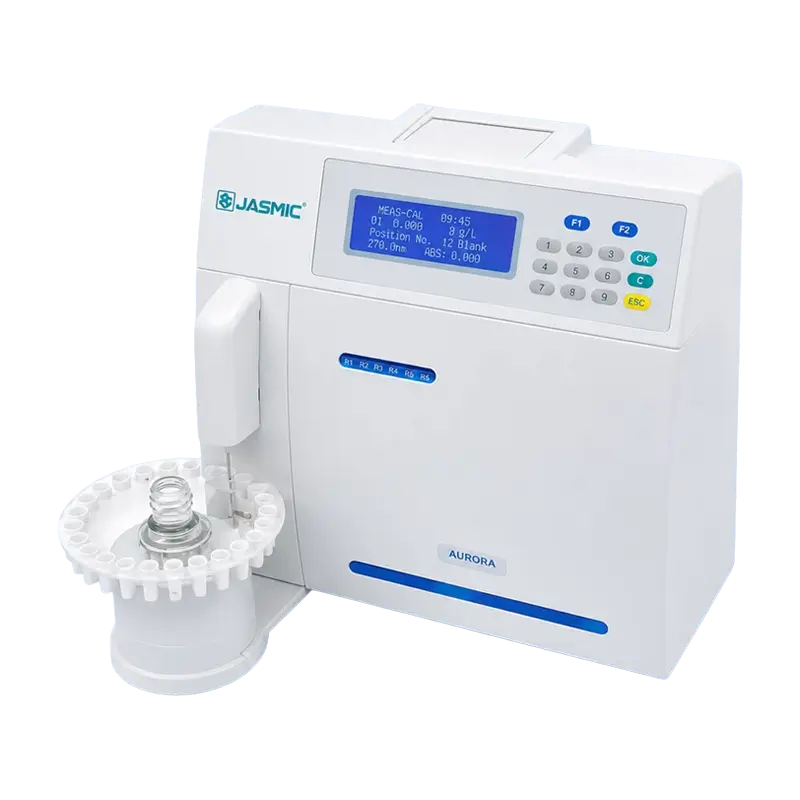

jm-9900 Analyzer
THROUGHPUT

≤100 Seconds

Measurement time up to 100 secondsfor complete electrolyte analysis using Ion Selective Electrode (ISE) technology,
providing fast and reliable results for routine clinical testing.

Application

Where JM-9900
makes a difference.

Clinical Department

Emergency Laboratory

Medical Center

Research Laboratory

Examination Center

KEY FEATURES

Engineered for
advanced electrolyte diagnostics

High‑performance electrolyte analyzer with advanced ion‑selective detection, minimal sample usage, and optimized laboratory workflow for reliable diagnostics.

Sample Types

Supports
  • Serum
  • Plasma
  • Whole Blood
  • Urine (optional depending on configuration)

Reagent System

Features
  • Ready-to-use reagents
  • Automatic calibration
  • Low reagent consumption
  • Stable electrode performance

Quality Control

  • Automatic calibration system
  • QC management
  • Accurate and stable results
  • Reduced operator errors

Electrode Technology

  • Long-life ion selective electrodes
  • High sensitivity detection
  • Reliable measurement accuracy
  • Easy maintenance

Easy maintenance

  • Automatic washing system
  • Electrode protection system
  • Simple operation procedure
  • Low maintenance requirement

User Friendly Operation

  • Color touch screen
  • Simple workflow
  • Real-time status monitoring
  • Easy parameter management

Reliable Electrolyte Analysis

  • Fast measurement
  • High accuracy
  • AUTOMATIC OPERATION
  • Laboratory efficiency improvement

Intelligent Protection System

  • Bubble detection
  • Automatic error alarm
  • Sample protection
  • System monitoring
DETECTION

Advanced ISE
Technology
forAccurate Electrolyte Analysis.

Ion Selective Electrode (ISE) technology provides fast and reliable electrolyte measurement with high stability and precision. Automatic calibration and intelligent analysis ensure consistent clinical results while reducing manual operation.

ISE
Technology

9 Electrolyte Parameters

K⁺ • Na⁺ • Cl⁻ • Ca²⁺ • pH • TCO₂ • nCa • TCa • AG

performance

Comprehensive performance metrics
for hematology parameters (Linearity & Carryover)

Parameter PRECISION Accuracy MEASUREMENT RANGE
K CV ≤ 1.5% ≥ 3.0% mmol/L 15.00–0.5
Na CV ≤ 1.5% ≥ 3.0% mmol/L 200.0–30.0
Cl CV ≤ 1.5% ≥ 3.0% mmol/L 200.0–30.0
Ca CV ≤ 1.5% ≥ 5.0% mmol/L 5.00–0.10
pH CV ≤ 1.0% ≥ 0.15 9.0–4.0
TCO₂ CV ≤ 3.0% ≥ mmol/L 3.0 mmol/L 70.0–4.0
Technical Specs

Every detail matters.

Principle
Ion Selective Electrode (ISE)
Measurement Time
≤100 Seconds
Sample Size
160 μL
Sampling Method
Automatic
DISPLAY
Color touch screen
Data Storage
Yes
Ion Selective Electrode (ISE)
RS232,USB
Power Supply
~220V±22V or 110V±11v,50Hz±1Hz,85VA
Dimension
408 × 390 × 230 mm
Weight
8 kg
Operating Enviroment
Temperature: 15–30°C

Humidity: ≤85%
