Hematology
Model: VX-h360

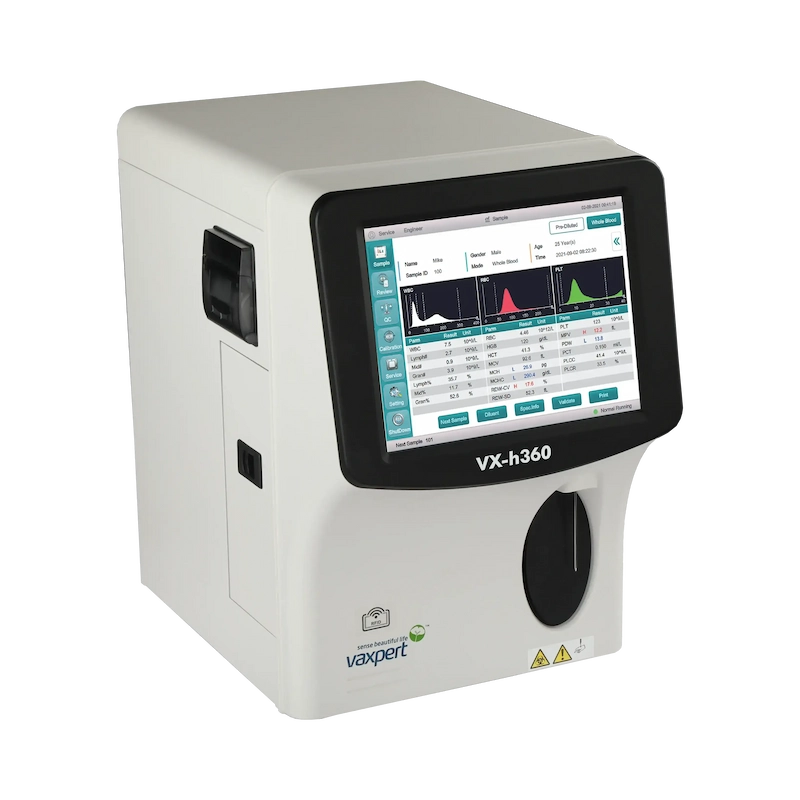

The VX-h360 is a compact 3-part hematology analyzer designed for efficient clinical use. It processes up to 60 samples per hour in both whole blood and pre-diluted modes, ensuring flexible operation. Equipped with a 10.4-inch color touchscreen and dual counting channels, it provides 21 hematological parameters complete with histograms and alert functions. Additional features include a built-in thermal printer, USB connectivity, and ample data storage capacity for seamless workflow.
VX-H360
AUTO HEMATOLOGY ANALYZER
60/hr
THROUGHPUT
9µL
MIN. VOLUME
500K
RESULTS STORED
21
PARAMETERS
60/hr
Up to 60 samples per hour in whole blood mode.
Double-channel counting for maximum efficiency.
Where VX-h360
makes a difference.
Clinical Department
Emergency Laboratory
Medical Center
Research Laboratory
Examination Center
Engineered for
high-throughput diagnostics
Double-channel counting, leading-edge detection technology, and a minimal 9µL
sample volume — all in one compact analyzer.
60 samples/hour
Throughput up to 60 samples per hour in whole blood mode with double-channel counting.
21 PARAMETERS
WBC, Lym#, Mid#, Gran#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, MPV, PDW, PCT and more — plus 3 histograms.
Minimal Sample Volume
Only 9µL of whole blood required — ideal for pediatric patients and challenging draws.
Leading Technology
Cell pulse baseline tracking, high voltage burning, built-in liquid sensor, and intelligent floating threshold technology.
500,000 Results
Large storage capacity including histograms and full patient information. 4 USB ports and bi-directional LIS.
Flexible Reporting
Built-in thermal printer. Supports 5+ external HP printers. Multiple built-in report templates available.
Dual-channel
precision
for complete blood
counts.
Impedance method for WBC, RBC, PLT — combined with cyanide-free colorimetric method for HGB. Intelligent floating threshold eliminates manual adjustments.
3-Part
Diff
21 PARAMETERS
WBC · RBC · HGB · HCT · PLT Lym% · Mid% · Gran% · MCV · MCH MCHC · RDW-CV · RDW-SD · MPV PDW · PCT · HGB · P-LCC · P-LCR + 3 Histograms
Every detail matters.
60 samples/hour
Whole blood mode
Double-channel for counting
Minimum 9 µL
Whole blood mode
Pre-diluted mode
Impedance (WBC, RBC, PLT)
Cyanide-free colorimetric (HGB)
21 PARAMETERS
+ 3 histograms, abnormal alarm
Cell pulse baseline tracking
High voltage burning · Liquid sensor · Intelligent threshold
3-Part diluent and lyse
10.4" Color Touch Panel
500,000 results
Including histograms and patient info
4 USB ports
Bi-directional LIS · USB keyboard, mouse, disk, printer
Built-in thermal printer
Supports 5+ external HP printers (optional)
100–240 VAC, 50/60 Hz
150 VA
10°C – 35°C
Humidity: 20%–85%
420 × 295 × 430 mm
≤ 28 kg
TÜV · CE
Multi-language support
Customizable factory setting
