● AUTO CHEMISTRY ANALYZER • RANDOM ACCESS

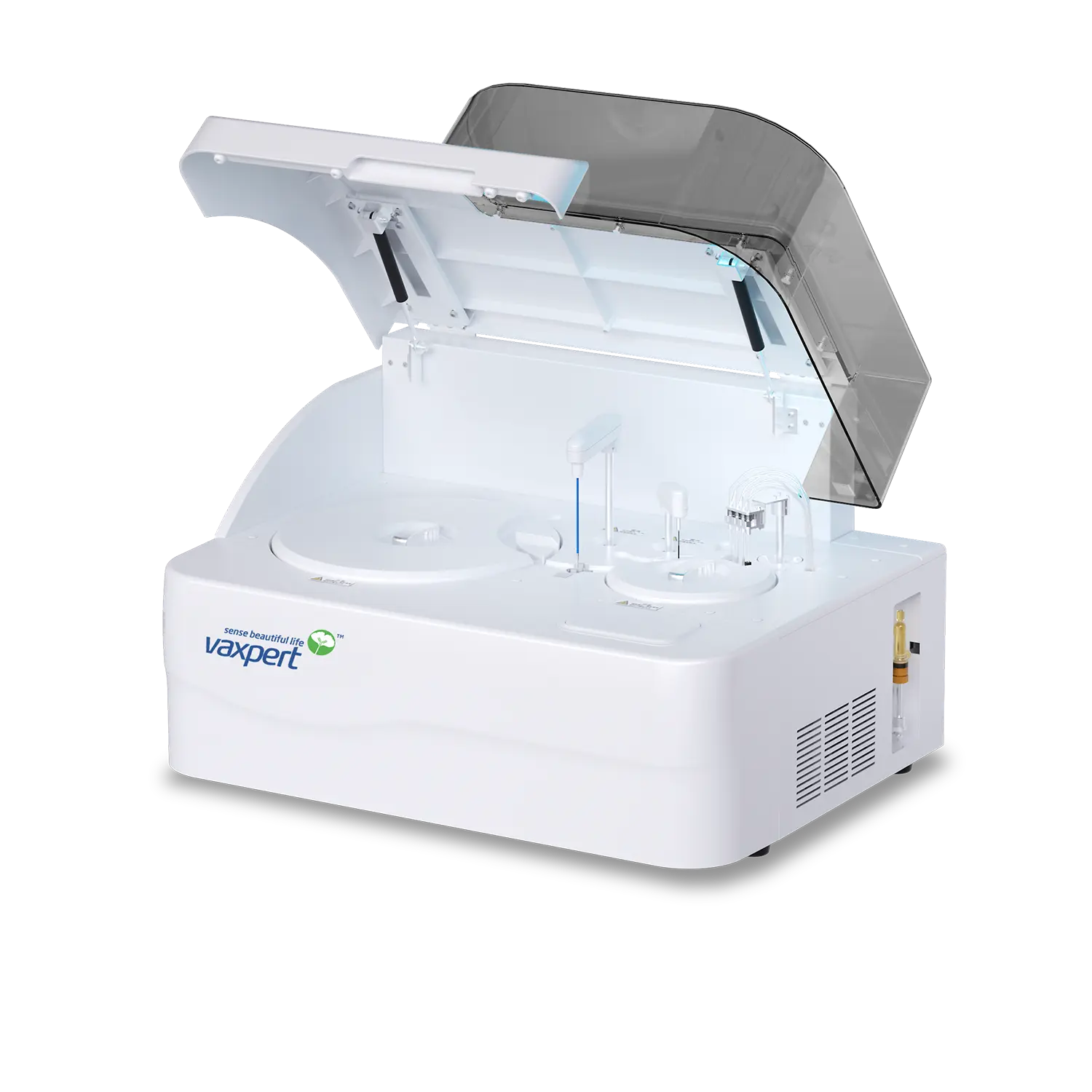

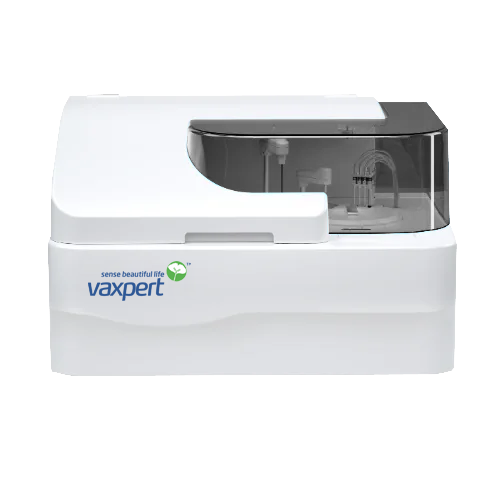

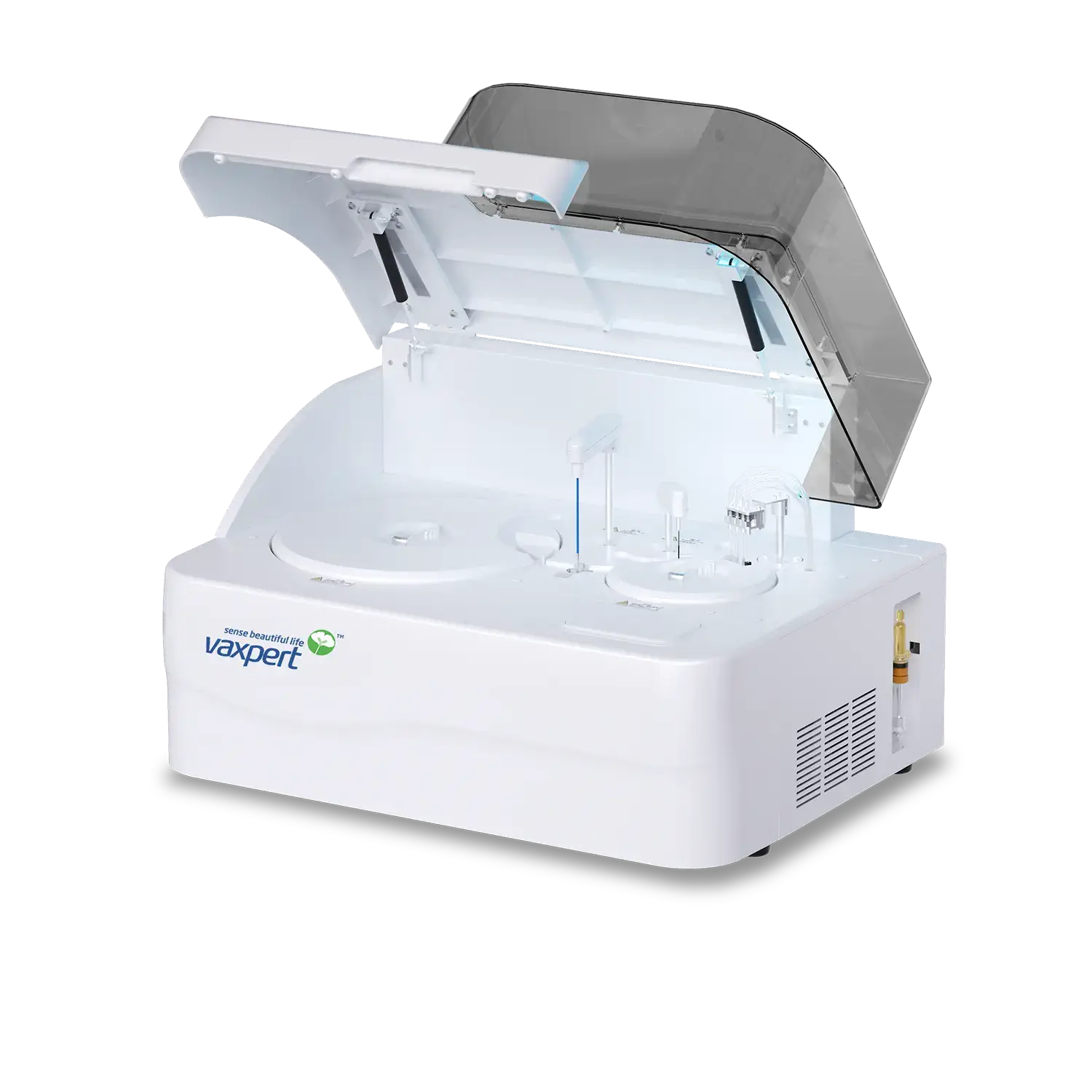

VX-b400
Auto Chemistry Analyzer
280/hr
Test Speed
80R
Reagent Positions
44
Cuvettes
0.1µL
Min. Volume
Test Speed
280/hr
Constant 280 tests per hour — mono or double reagent.
Random access, open reagent system.
APPLICATION
Where VX-b400
Where VX-b400
makes a difference.
Clinical Department
Emergency Laboratory
Medical Center
Research Laboratory
Examination Center
KEY FEATURES
Engineered for
Engineered for
high-throughput diagnostics
Independent dual probes, ceramic syringe precision, non-stop reagent cooling, and a Peltier-based reaction system — all in one compact analyzer.
280 Tests/Hour
Constant throughput of 280 tests per hour with mono or double reagent — uninterrupted random access operation.
Precision Ceramic Syringe
Permanent ceramic piston with accurate dispensing as low as 0.1 µL — ensuring maximum precision in sample and reagent handling.
Non-Stop Reagent Cooling
80 reagent positions with Peltier pad cooling system maintaining 2°C–14°C 24 hours a day for optimal reagent stability.
Stable Reaction Temperature
Peltier pad incubation system maintains reaction temperature at 37±0.1°C for stable, accurate results every time.
Advanced Software
Windows-based platform with automatic calibration, Westgard QC rules, multi-point calibration up to 8 points, and LIS integration.
4-Stage Auto Washing
4-stage, 2× automatic washing system with Teflon-coated mixer for effective carry-over reduction and reliable results.
OPTICAL SYSTEM
Multi-
wavelength
precision
detection.
Halogen lamp light source with 8 wavelength channels — colorimetric method and turbidimetry across the full chemistry panel. Resolution down to 0.0001 Abs.
8 Wavelengths
340 · 405 · 450 · 505nm
546 · 578 · 630 · 700nm
Absorbance range: 0–4.0 Abs
Resolution: 0.0001 Abs
Reaction volume: 150–330 µL
TECHNICAL SPECS
Every detail matters.
MACHINE TYPE
Random Access
Open reagent & locked reagent (optional)
TEST SPEED
280 Tests/Hour
Mono or double reagent
TEST PRINCIPLE
Colorimetric method
Turbidimetry
TEST METHOD
1-point end, 2-point end
Fixed-Time, Kinetics
CALIBRATION
Linear & nonlinear
Up to 8-point multi-point calibration
SAMPLE TRAY
40 sample positions
SAMPLE TUBE
Micro cup, test tube, blood collection tube
Φ12–13mm × 25–100mm
SAMPLE VOLUME
2–30 μL
Step by 0.1 μL
REAGENT TRAY
80 positions (40×R1 + 40×R2)
24h cooling 2°C–14°C, open system
REAGENT VOLUME
20–300 μL
Step by 1 μL
REACTION TRAY
44 cuvettes
UV plastic, perfect transmittance
REACTION VOLUME
150–330 μL
REACTION TEMP
37°C ± 0.1°C
Peltier pad incubation
LIGHT SOURCE
Halogen lamp
WAVELENGTHS
340, 405, 450, 505, 546, 578, 630, 700nm
+4 optional
ABSORBANCE
0–4.0 Abs
Resolution: 0.0001 Abs
OPERATING SYSTEM
Windows XP / 7 / 8 / 10
INTERFACE
TCP/IP network
REPORT PRINTING
6 formats optional
Custom pattern supported
POWER SUPPLY
AC 110/220V ±10%, 50/60 Hz
650W
WATER CONSUMPTION
8 L/hour (maximum)
DIMENSION
745 × 540 × 530 mm
WEIGHT
45.4 kg
