Glycated Hemoglobin (HbA1c) Analyzer

Hematology

Model: HbA1c

The VX-Hb730 is a fully automated HbA1c analyzer using HPLC technology. It delivers fast testing speed with multiple modes for HbA1c, HbF, and HbA2 variants. Equipped with a touchscreen, barcode scanner, and printer, it ensures reliable workflow. Compact design with high precision (CV ≤ 2%) makes it ideal for diabetes monitoring.

Download Catalog
Product
● HPLC GOLD STANDARD • HBA1C

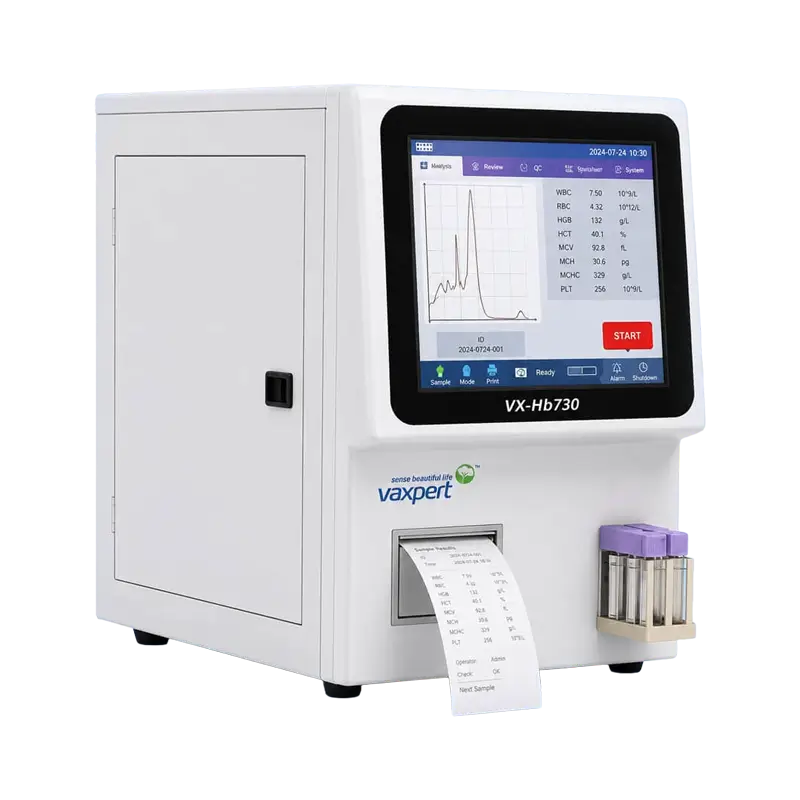

VX-Hb730

Glycated Hemoglobin (HPLC) Analyzer

HPLC GOLD STANDARD NGSP & IFCC CE CERTIFIED

75s

PER TEST

CV≤2%

PRECISION

50K

RESULTS STORED

3

TEST MODES

Application

Where VX-Hb730
makes a difference.

Diabetes Monitoring Clinics

Clinical Department

Emergency Laboratory

Medical Center

Research Laboratory

KEY FEATURES

Engineered for
clinical precision.

Ion-Exchange HPLC methodology. Zero pretreatment. Three test modes on the same reagent.

One Step Operation

No pretreatment. Hemolysin added and result printed automatically.

Auto Cap Piercing 10 Samples at Once

Ion-Exchange HPLC

Gold standard methodology with 415nm LED detector and 20,000hr lifespan.

NGSP Traceable IFCC Traceable

Three Test Modes

Three Test Modes

Fast, Variant and β-Thalassemia — all with the same reagent.

75s Fast 100s Variant 240s β-Thal

Auto Identification

Built-in barcode scanner. Automatic cap piercing and sample detection.

Barcode Scanner Auto Sample ID

50,000 Results

Large storage with full LIS/HIS connectivity and PC software.

LIS/HIS PC Software

Free Maintenance

Online buffer alarm and high-stability pump for precision.

Online Alarm High-stability Pump

PRECISION STANDARD

The gold
standard
in HbA1c
testing.

Excellent intra-assay and inter-assay repeatability. NGSP & IFCC traceable results validated against global standards.

CV ≤ 2%

Within-run: CV 1.08% (Low) / 0.65% (High)
Inter-run: CV 1.79% (Low) / 1.13% (High)
n=20 · R²=0.9901

Technical Specs

Every detail matters..

METHODOLOGY
Ion-Exchange HPLC

High Pressure Liquid Chromatography

INSTRUMENT
Fully-Auto Glycated Hemoglobin HbA1c Analyzer
Sample Type
Venous Blood, Finger Peripheral Blood

or Hemolyse Blood

SAMPLE VOLUME
5 μL Whole Blood

Lyse ratio 5μL : 1500μL

SAMPLE RACK
10 Positions

Primary Tube and Sample Cups

TEST SPEED
Fast: 75 sec/test

Variant: 100s • β-Thal: 240s

MEASUREMENT RANGE
HbA1c: 3–25%

HbF: 0.3–45% • HbA2: 0–15%

PRECISION
CV ≤ 2%
PARAMETERS
NGSP, IFCC

HbA1a, A1b, HbF, LA1c, A1c, A0

PHOTOMETER
415nm LED

20,000 hours life span

COLUMN CAPACITY
4,000 Tests

Up to 10,000 tests

PRE-SIEVE
1,000 Tests
DISPLAY
10.4" TFT Colorful LCD

Touch Screen

STORAGE
50,000 Results

or 7,500 results with curves

DATA TRANSFER
USB, LIS/HIS

Independent PC Software

Power Supply
110V–220V, 50–60Hz
Power Supply
310 × 470 × 500 mm
Weight
20 kg
