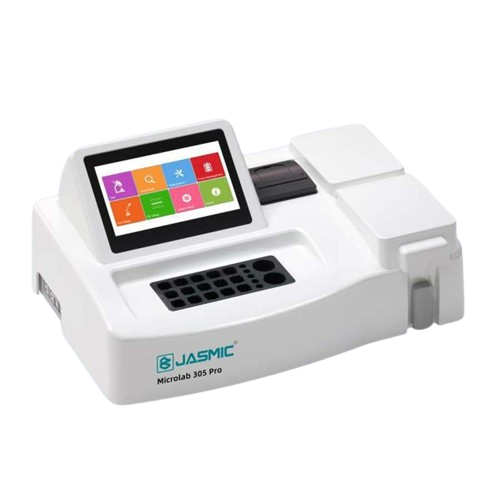

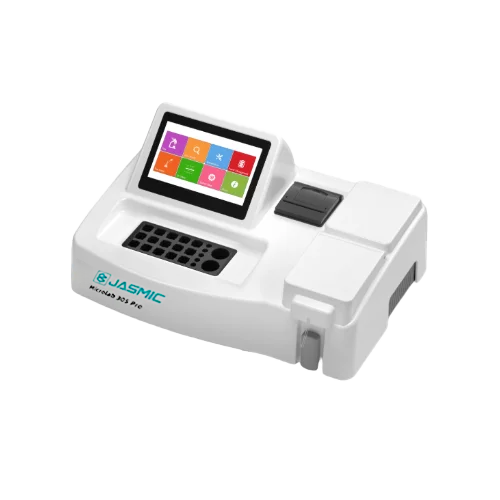

Model: Microlab 305
The Vaxpert (Microlab 305) is a reliable semi-automatic biochemistry analyzer designed for clinical and veterinary laboratories, offering precise and efficient testing capabilities. Equipped with a vibrant 7-inch color touchscreen, it provides an intuitive and user-friendly interface for easy operation. This analyzer includes a built-in thermal printer and a Peltier incubator to ensure accurate and consistent temperature control during assays. Supporting a broad range of biochemical and coagulation tests, it meets the needs of small to medium-sized labs.
The Vaxpert (Microlab 305) Semi-Auto Chemistry Analyzer supports multiple sample types including serum, plasma, whole blood, and urine for versatile testing applications. Utilizing advanced UV-Vis photometric technology, it performs various testing modes such as end-point, kinetics, fixed-time, and coagulation assays with high accuracy. Its 7-inch TFT touchscreen runs on the Windows Embedded Compact 7 OS, enhancing usability with an interactive display and straightforward menu navigation. Data management is robust, storing up to 200,000 test results and over 300 testing programs, facilitating efficient lab workflow. Connectivity options include five USB ports and Ethernet for easy integration with Laboratory Information Systems (LIS). The instrument features a long-life tungsten halogen lamp and a 7-filter optical system for reliable and sensitive detection. A built-in Peltier incubator maintains precise temperature settings at 25, 30, and 37 degrees Celsius to optimize assay performance.
| Measrred Item | Measuring range | Reproducicilty(CV%) |
| K+ | 0.50-1500mmol/L | <1.0% |
| Na+ | 30.0-200.0mmol/L | <1.0% |
| Cl- | 30.0-200.0mmol/L | <1.0% |
| Ca2+ | 0.10-5.00mmol/L | <2.0% |
| PH | 7.00-9.00(unit) | <1.0% |
| Li+ | 0.30-3.00mmol/L | <3.0% |
| Principle | UV‑vis photometry (end‑point, kinetics, fixed‑time, coagulation |
|---|---|
| Sample Type | Serum, plasma, whole blood, urine, coagulation tubes |
| Sample Mixing | No |
| Screen size | "7″ TFT touch (800×480 px) |
| Power Supply | AC 100–240 V, 50/60 Hz, ≤50 W |
| Network Connectivity | Ethernet port, LIS compatible |
| Operating System | Windows Embedded Compact 7 |
| Net Weight | 5.41 KG |
| Testing Channel | Flow‑cell & cuvette |
| Data Storage Capacity | 200000 |
| Data Transmission | USB (5 ports), Ethernet, LIS-compatible |
| Printer | Built‑in thermal (57 mm) |
| Applicable Card Type | Standard & coagulation cuvettes |
